PEARL PIGMENT COLOR CHART
|
PEARL PIGMENT
|
|
|
PEARL PIGMENT COLOR CHART
|
|
| IMPORTANT NOTES WHEN USING PEARL PIGMENTS | |
| PEARL PIGMENTS PRODUCT LIST | |
| APPLICATION IN COSMETIC | APPLICATION IN TEXTILE PRINTING | APPLICATION IN PAINTS |
 |
 |
 |
| APPLICATION IN PLASTICS | APPLICATION IN WALLPAPER | APPLICATION IN PRINTING INK |
 |
 |
 |
- Non-arcing. Does not conduct electricity, is safe to use in dry state, does not have to be in a paste form. Particularly
helpful when replacing metal flakes.
- Acid/Alkali Resistance, Highly chemical resistant, these colourants are suitable for inclusion in the most hostile carriers.
- Good Dispersibility. Does not dissolve in water, but easily dispersiable in water-borne systems.
- High Temperature Stability. Suitable for high heat applications since pearl pigment can withstand temperature in excess
of 800 ℃ without failure. Incombustible.
Natural (cultured) pearls structure consists of an alternating layer-like arrangement of calcium carbonate and proteins which lie one upon another around a core. ( pic 1 ).
The interplay of refraction, reflection and transmission of light at the individual layers products the familiar iridescent or interference colours. ( pic 2 )
Artificial pearl pigments possess the property of pearlescence as they are of a layer-construction and function towards light according to the above principles. When pearl pigments are orientated parallel to the surface of the substrate within a transparent medium, the incident light to each pigment platelet is regularly reflected and optimum pearl lustre effects are achieved. ( pic 3 ).
On the other hand when the degree of parallel orientation is not enough, light scattering occurs and as a result the pearl lustre is lost ( pic 4 ).
The color of the reflected light varies depending on the thickness of the layer. The incident light is reflected and refracted by the film ; part of the light passes through and a smaller part is reflected. ( pic 5 ).
Pearl pigment are inorganic and consist of mica platelets coated with metal oxides of high index of refraction, such as titanium dioxide and iron oxide. The boundaries between the mica platelets of low refractive index, the metal oxides (e.g. TiO2) with high refractive index and the surrounding medium of low refractive index, in which the pigments are parallel embeded, generate the optical iridescent colours ( pic 6 ).
By coating miniscule mica platelets with varying thicknesses of titanium dioxide, we obtain interference colours. Metallic colours can be produced by combining mica with other metal oxides, such as iron (III) oxide. Interesting gold shade results from the simultaneous combination of titanium dioxide and iron (III) coatings. ( pic 7 ).
Pic. 1 Mother-of-pearl
Pic. 2 Light reflection in mother-of-pearl
Pic. 3 Regular multiple reflection
Pic. 4 Light scattering
Pic. 5 Formation of interference colors extremely thin layers
Pic. 6 PEARL PIGMENT (MICA/METAL OXIDE )
Pic. 7 Metallic and interference colors
Pearl Pigments are suitable for transparent or transluscent resins. Since Pearl Pigment is an internal optical phenomenon, high clarity resin (PVC, Polystyrene, Acrylics, etc.) give the most striking results. Transluscent resins (Polypropylene, Polyethylene, etc), though possessing some degree of milkiness, also yield attractive products.
Example 1. ( Polystyrene )
2) Injection Moulding
|
Remarks |
Remarks : |
|
|
- The smaller the pellet size is (below 2mm), the better the dispersibility. - The usage of Pearl pigments together with carbon black produces metallic or bronze colours. |
- In-line screw type (Auger) is recommended for dry blending. - Marble effect products by moulding. |
|
Example 2. ( PVC )
|
Formulation (Powdered PVC) |
|||
| * | Powdered PVC | 67 parts |
|
| * | Plasticizer (DBP:DOP=1:1) | 33 parts |
|
| * | Heat Stabilizer | 1 part |
|
| * | Pearl Pigment | 1 part |
|
|
* |
Transparent Colourant |
0.001-0.01parts |
|
|
- The above formulation is for reference only and a formulation can be voluntarily modified according to processing conditions. |
|
- Please note that Pearl Lustre Pigments should be added at the final stage when using high speed mixers, e.g. Henschelmixer, Drais Mixer, Fluid mixer (in order to avoid unnecessary breakage of the pearl pigments platelets). |
|
Normal Pearl Pigments Concentration |
|
The normal concentration of Pearl Lustre Pigments incorporated into plastics is 0.5-1.5%, excluding special cases. The thicker the sheet thickness or moulded products are, so the concentration of the Pearl Lustre Pigments requirement will be lower. The thinner the product, the higher the pigment concentration needed. However, please note that too high a concentration of them does not increase the pearl lustre effect On the contrary it will cause a poor effect. |
|
Usage |
|
Cosmetic containers, food containers, wall and floor coverings, home appliances, toys, toiletries, films, sheets, profiles, etc. |
Pearl Pigments are available for printing inks as conventional pigments. There are various to choose from according to particle size range and should be selected according to the individual printing process. Pearlescent inks can be easily prepared, by the incorporation of Pearl Pigments into the ink medium.
Example
|
Remarks : Pre-mixture of Pearl Lustre Pigments with a small amount of binder of ink medium produces better dispersibility and printability |
|
Normal Concentration |
|||
|
The concentration of Pearl Pigments in the ink medium depends on the printing process and article to be printed. |
|||
| Printing Ink | Concentration (%) |
|
|
| screen ink | 5-20 |
|
|
| gravure ink | 10-20 |
|
|
| off-set ink | 30 |
|
|
|
Normal Concentration |
|
Packages, wrappers, covering papers, wall coverings, decorative boards, textiles, films, labels, etc. |
Pearl Pigments possess good dispersibility and physical stability and can be used in paints. Pearlescent paints can be prepared by incorporating the correct amount of Pearl Pigments into a clear lacquer, this is the same for an enamel. Pearl Pigments are supplied in various grades and each produces a particular effect. A suitable grade should be selected according to the application. Pearl Pigments are suitable for electrostatic coating. In addition they have good acid and alkali resistance and are suitable for use water-borne paints. They are also resistant to sulphurous products.
Example
|
Remarks : Pre-mixture of Pearl Lustre Pigments with a small amount of binder of binder paint or wetting agent produces good dispersibility. |
|
Normal Concentration |
|||
|
The normal concentration of Pearl Pigments for paints depends on the types and shapes to be painted and the painting or coating process The following are normal concentrations used in various paints : |
|||
| Paints | Concentration (%) |
|
|
| Automobiles | 5-10 |
|
|
| Construction Materials | 5-10 |
|
|
| Powder Coatings | 2-7 | ||
| Plastics | 5-10 | ||
| Heat Resistance | case by case |
|
|
| Household Articles | case by case | ||
|
Pearl Coating |
|
Pearlescent paints containing Pearl Pigments are employed for high grade finishes for automobiles, motorcycles, bicycles, boat and so on. Spray coating, electrostatic coating and dip coating are some of the typical coating techniques used for the application of pearlescent paints. |
|
Usages |
|
Automobiles, motorcycles, construction materials, roof tiles, furniture, household commodities, cosmetic containers, stationeries, sports equipment, etc. |
APPLICATION FOR SPECIAL EFFECTS
|
Application |
Pearl Pigments are unique colouring materials which give pearl lustre effects alone and/or in combination with conventional inorganic, organic or even with metallic pigments they enable one to take full advantage of the splendour of the colours of Nature seen in our surroundings. |
| * Special Effects | |
|
Silver metallic effect |
The combination of the 100 series and carbon black (0.001-0.05%) produces silver metallic effects. |
|
Bronze effect |
- 300 series alone or with carbon black - 100 series with transparent yellow colourants - 100 series mixed with 300 series the aforementioned combinations create various bronze effects.
|
|
Silky pastel effects |
- the combination of 100 series and a little amount of an opaque colorant, such as; yellow, red, blue, ect., or a minimal amount of titanium dioxide. - by applying the 100 series onto a pastel coloredackgound |
|
Dark iridescent colour |
The combination of the 200 series with carbon black (0.001-0.05%) or by applying them to a black background produces dark iridescent colours.
|
IMPORTANT NOTES WHEN USING PEARL PIGMENTS
|
1. |
Transparent pigments and dyestuffs combined with Pearl Pigments offer a wide spectrum of effects. Opaque pigments diminish the pearl lustre effects. |
|
2. |
Over-grinding, over-milling or even over-processing can lead to the fracture of the plate-like flake structure of the pigments into smaller light scattering particles, producing a milky lesslustrous appearance in the end product. |
|
3. |
In printing inks and paints, low viscosity situations may cause a concentration change, leading to a colour change, due to the settlement of the pearl pigments. Good and continuous of the ink will prevent settling. |
|
4. |
Combination of 2-different interference pigments which are complimentary to one another should be avoided. |
| 5. |
In combination with dyestuffs, the light stability test should be established in advance to going into production. |

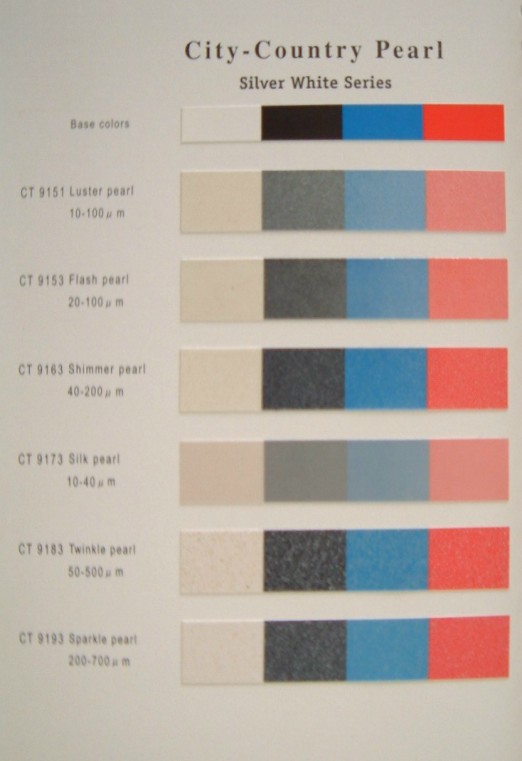

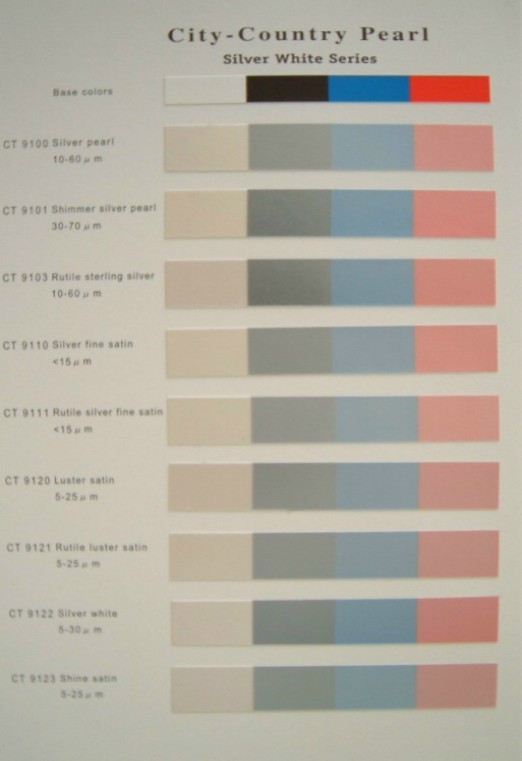

1. SILVER WHITE PIGMENTS
| Item : | Color : | Particle Size : |
TiO2 Type : |
Description : | |
| CT-9100W | Silver pearl | 10-60 µm | Anatase | Bright pearlescent luster, most widely used | |
| CT-9101 | Shimmer silver pearl | 30-70 µm | Anatase | Brilliant pearlescent luster, have both good coverage performance and luster | |
| CT-9103 | Rutile sterling silver | 10-60 µm | Rutile | Good weather resistance, bright pearlescent luster | |
| CT-9110 | Silver fine satin | < 15 µm | Anatase | Bland glossy luster, smooth, perfect coverage performance | |
| CT-9111 | Rutile silver fine satin | < 15 µm | Rutile | Good weather resistance, glossy luster, smooth, perfect coverage performance | |
| CT-9120 | Luster satin | 5-25 µm | Anatase | Satiny luster, good coverage performance | |
| CT-9121 | Rutile luster satin | 5-25 µm | Rutile | Good weather resistance, satiny luster, good coverage performance | |
| CT-9122 | Silver white | 5-30 µm | Rutile | Good weather resistance, perfect satiny luster, good coverage performance | |
| CT-9123 | Shine satin | 5-25 µm | Rutile | Good weather resistance, bright satiny luster, good coverage performance | |
| CT-9151 | Luster pearl | 10-100 µm | Anatase | Glittering white pearlescent luster | |
| CT-9153 | Flash pearl | 20-120 µm | Anatase | glittery white pearlescnet luster, good transparence | |
| CT-9163 | Shimmer pearl | 50-200 µm | Anatase | Sparkling white pearlescent luster, highly transparent | |
| CT-9173 | Silk pearl | 10-40 µm | Anatase | Special luster, medium coverage performance | |
| CT-9183 | Twinkle pearl | 50-500 µm | Anatase | Shimmer luster, highly transparent, low additive level in application | |
| CT-9193 | Sparkle pearl | 70-700 µm | Anatase | Glary, large particle size, highly transparent, low additive level in application |

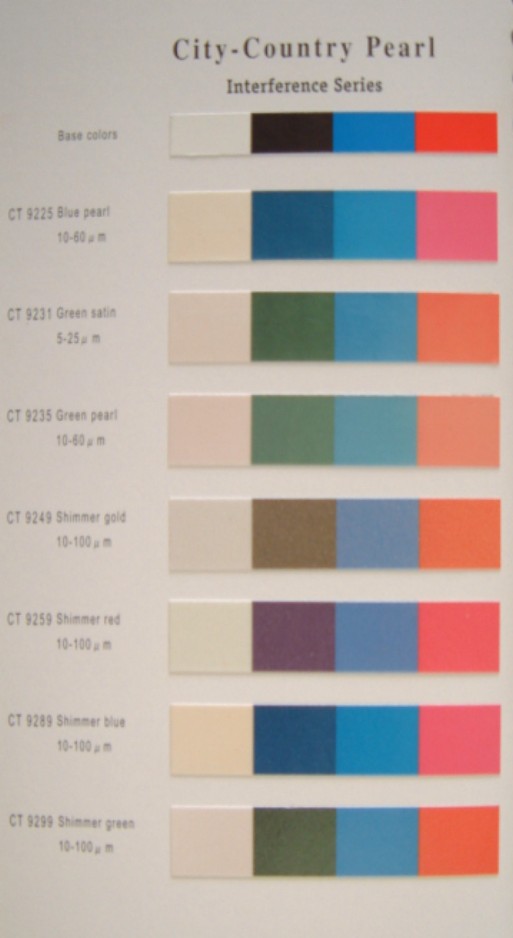

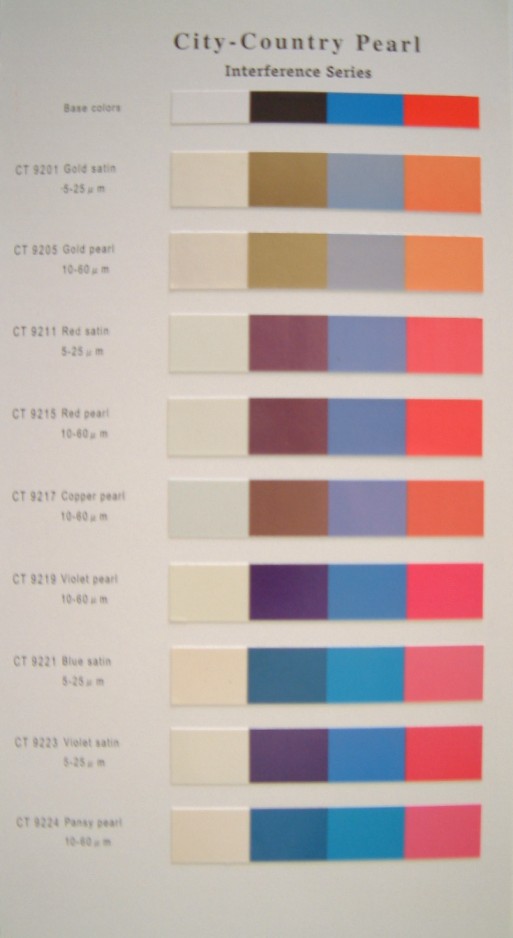

2. INTERFERENCE SERIES
| Item : | Color : | Particle Size : |
TiO2 Type : |
Description : | |
| CT-9201 | Gold satin | 5-25 µm | Rutile | Excellent weather resistance, golden satiny luster, baby-blue transmission color, good coverage performance | |
| CT-9205 | Gold pearl | 10-60 µm | Rutile | Excellent weather resistance, bright golden pearlescent luster, baby-blue transmission color | |
| CT-9211 | Red Satin | 5-25 µm | Rutile | Excellent weather resistance, red satiny luster, pea green transmission color, good coverage performance | |
| CT-9215 | Red pearl | 10-60 µm | Rutile | Excellent weather resistance, bright red pearlescent luster, pea green transmission color | |
| CT-9217 | Copper pearl | 10-60 µm | Rutile | Excellent weather resistance, bright copper pearlescent luster, lavender transmission color | |
| CT-9219 | Violet pearl | 10-60 µm | Rutile | Excellent weather resistance, bright purple pearlescent luster, light cyan transmission color | |
| CT-9221 | Blue satin | 5-25 µm | Rutile | Excellent weather resistance, violet satiny luster, light cyan transmission color, good coverage performance | |
| CT-9223 | Violet satin | 5-25 µm | Rutile | Excellent weather resistance, blue satiny luster, jasmine transmission color, good coverage performance | |
| CT-9224 | Pansy pearl | 10-60 µm | Rutile | Excellent weather resistance, bright pansy pearlescent luster, jasmine transmission color | |
| CT-9225 | Blue pearl | 10-60 µm | Rutile | Excellent weather resistance, bright blue pearlescent luster, salmon pink transmission color | |
| CT-9231 | Green satin | 5-25 µm | Rutile | Excellent weather resistance, green satiny luster, rose pink transmission color, good coverage performance | |
| CT-9235 | Green pearl | 10-60 µm | Rutile | Excellent weather resistance, bright green pearlescent luster, rose pink transmission color | |
| CT-9249 | Shimmer gold | 10-100 µm | Rutile | Excellent weather resistance, high-light golden luster, baby-blue transmission color, highly transparent | |
| CT-9259 | Shimmer red | 10-100 µm | Rutile | Excellent weather resistance, high-light red luster, pea green transmission color, highly transparent | |
| CT-9289 | Shimmer blue | 10-100 µm | Rutile | Excellent weather resistance, high-light blue luster, jasmine transmission color, highly transparent | |
| CT-9299 | Shimmer green | 10-100 µm | Rutile | Excellent weather resistance, glittery green luster, rose pink transmission color, highly transparent |

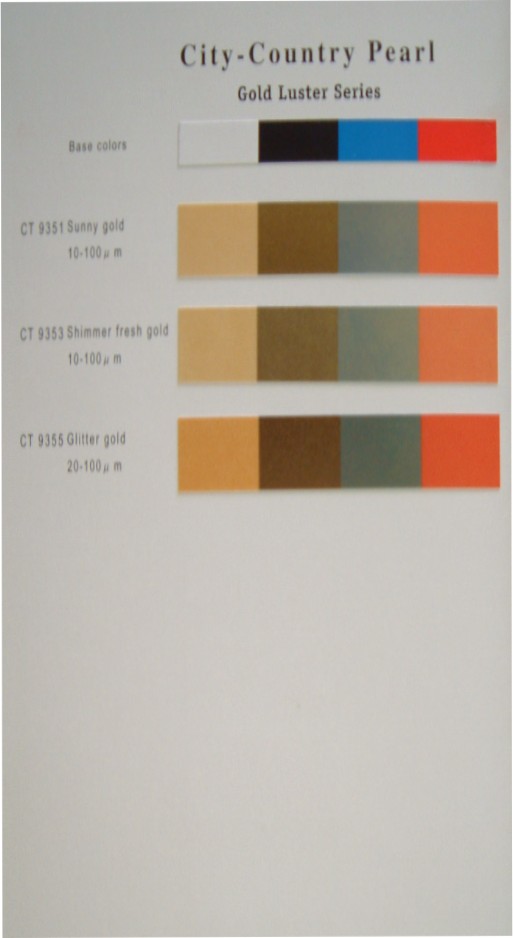

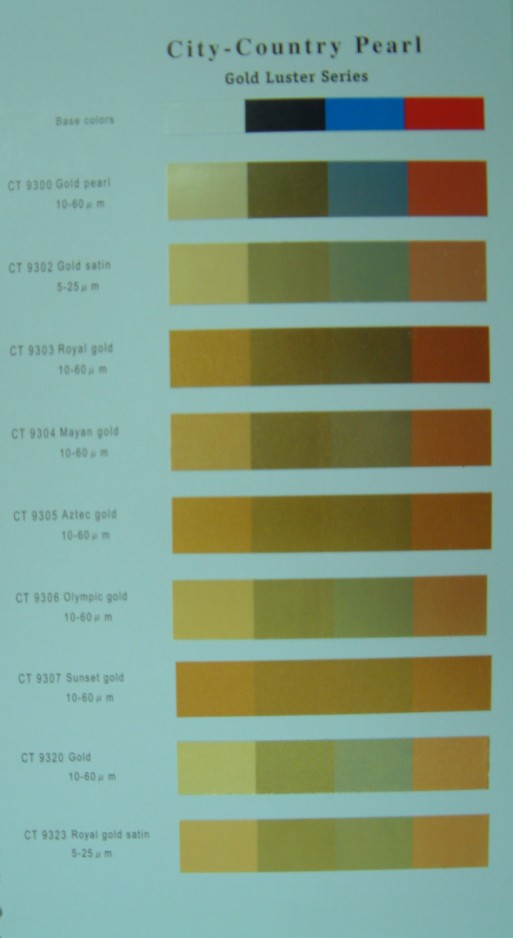

3. GOLD LUSTER SERIES
| Item : | Color : | Particle Size : | Description : | ||
| CT-9300 | Gold pearl | 10-60 µm | Bright luster, golden pearlescent effect | ||
| CT-9302 | Gold satin | 5-25 µm | Satiny luster, good coverage performance, gold satiny effect | ||
| CT-9303 | Royal gold | 10-60 µm | Bright luster, light red-gold metallic effect | ||
| CT-9304 | Mayan gold | 10-60 µm | Bright luster, profound golden effect | ||
| CT-9305 | Aztec gold | 10-60 µm | Bright luster, strong red-gold effect | ||
| CT-9306 | Olympic gold | 10-60 µm | Bright luster, showy gold effect | ||
| CT-9307 | Sunset gold | 10-60 µm | Bright luster, profound and showy gold effect | ||
| CT-9320 | Gold | 10-60 µm | Bright luster, showy sunny gold effect | ||
| CT-9323 | Royal gold satin | 5-25 µm | Satiny luster, good coverage performance, red-gold satiny effect | ||
| CT-9351 | Sunny gold | 10-100 µm | High-light luster, well transparent, yellow-gold effect | ||
| CT-9353 | Shimmer fresh gold | 10-100 µm | High-light luster, well transparent, red-gold effect | ||
| CT-9355 | Glitter gold | 20-100 µm | Special glitter luster, highly transparent, red-gold effect |

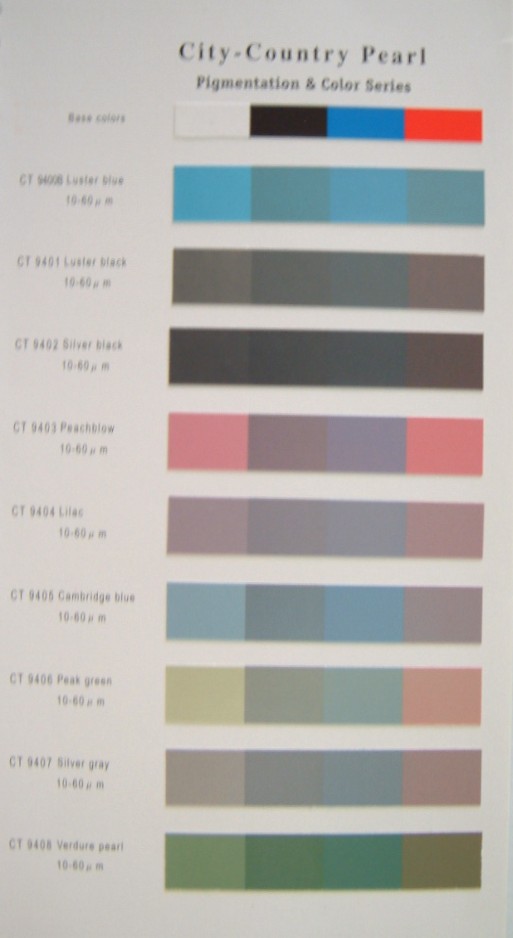

4. PIGMENTATION & COLOR SERIES
| Item : | Color : | Particle Size : | Description : | ||
| CT-9400B | Luster blue | 10-60 µm | Pure blue grounding, silver white reflected color, bright pearlescent luster | ||
| CT-9401 | Luster black | 10-60 µm | Black grounding, silver white reflected color, bright pearlescent luster | ||
| CT-9402 | Silver black | 10-60 µm | Pure black grounding, silver white reflected color, bright pearlescent luster | ||
| CT-9403 | Peachblow | 10-60 µm | Peachblow grounding, silver white reflected color, bright pearlescent luster | ||
| CT-9404 | Lilac | 10-60 µm | Lilac grounding, silver white reflected color, bright pearlescent luster | ||
| CT-9405 | Cambridge blue | 10-60 µm | Cambridge blue grounding, silver white reflected color, bright pearlescent luster | ||
| CT-9406 | Peak green | 10-60 µm | Peak green grounding, silver white reflected color, bright pearlescent luster | ||
| CT-9407 | Silver gray | 5-25 µm | Silver gray grounding, silver white reflected color, satiny pearlescent luster | ||
| CT-9408 | Verdure green | 10-60 µm | Cyan grounding, green reflected color, bright luster | ||
| CT-9410 | Cupreous-brown | 10-60 µm | Profound, bright cupreous-brown effect, excellent coverage performance | ||
| CT-9411 | Deep-brown | 10-60 µm | More profound and bright brown effect, excellent coverage performance | ||
| CT-9415 | Magic red | 10-60 µm | Red grounding and reflected color, bright luster | ||
| CT-9418 | Rose red | 10-60 µm | Rose red grounding, red reflected color, bright luster | ||
| CT-9419 | Magic violet | 10-60 µm | Violet grounding and reflected color, bright luster | ||
| CT-9421 | Yellow pearl | 10-60 µm | Yellow-violet grounding and reflected color, bright luster | ||
| CT-9424 | Pansy pearl | 10-60 µm | Pansy grounding, blue reflected color, bright luster | ||
| CT-9425 | Magic blue | 10-60 µm | Blue grounding and reflected color, bright luster | ||
| CT-9430 | Shimmer deep copper | 20-100 µm | Fuscous brown grounding, glittery metallic effect | ||
| CT-9435 | Apple green | 10-60 µm | Green grounding and reflected color, bright luster |

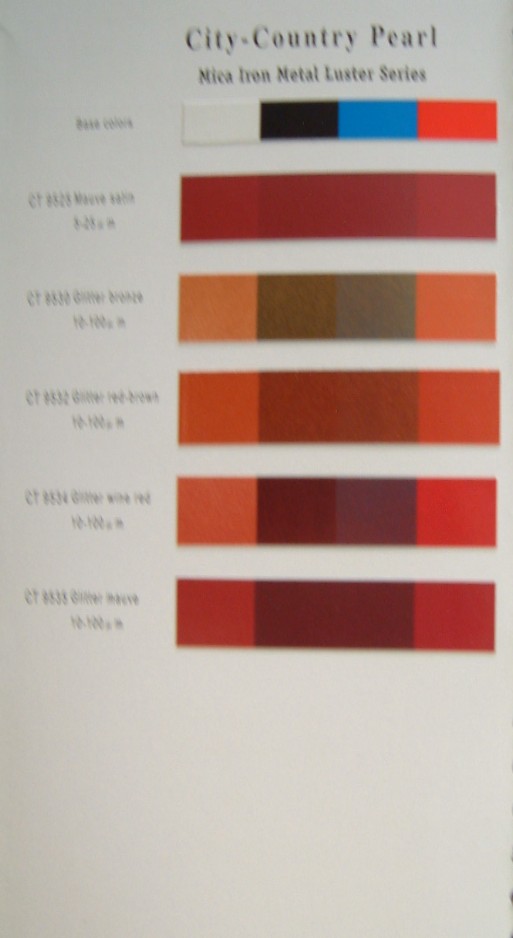

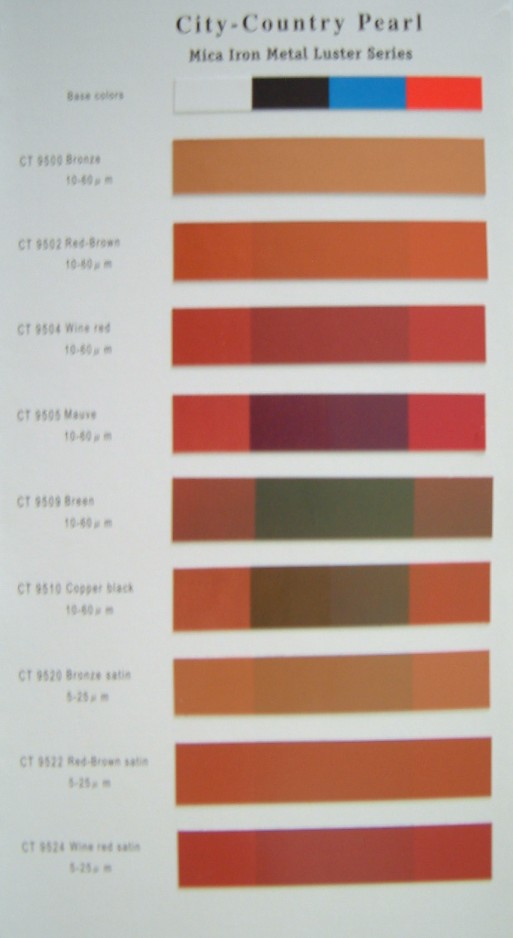

5. MICA IRON METAL LUSTER SERIES
| Item : | Color : | Particle Size : | Description : | ||
| CT-9500 | Bronze | 10-60 µm | Bright metallic luster, strong bronze effect, good coverage performance | ||
| CT-9502 | Red-Brown | 10-60 µm | Bright metallic luster, strong red brown, good coverage performance | ||
| CT-9504 | Wine red | 10-60 µm | Bright metallic luster, strong wine red, good coverage performance | ||
| CT-9505 | Mauve | 10-60 µm | Bright metallic luster, strong mauve, good coverage performance | ||
| CT-9509 | Breen | 10-60 µm | Bright metallic luster, strong breen, good coverage performance | ||
| CT-9510 | Copper black | 10-60 µm | Bright metallic luster, strong reddish bronze, good coverage performance | ||
| CT-9520 | Bronze satin | 5-25 µm | Satiny metallic luster and bronze effect, excellent coverage performance | ||
| CT-9522 | Red-Brown satin | 5-25 µm | Satiny metallic luster and copper-red color, excellent coverage performance | ||
| CT-9524 | Wine red satin | 5-25 µm | Satiny metallic luster and wine-red color, good coverage performance | ||
| CT-9525 | Mauve satin | 5-25 µm | Satiny metallic luster and mauve color, good coverage performance | ||
| CT-9530 | Glitter bronze | 10-100 µm | High-light metallic luster, bronze color | ||
| CT-9532 | Glitter red-brown | 10-100 µm | High-light metallic luster, copper-red color | ||
| CT-9534 | Glitter wine red | 10-100 µm | High-light metallic luster, wine-red color | ||
| CT-9535 | Glitter mauve | 10-100 µm | High-light metallic luster, mauve color |
